technical info: sans 10087-1: 2013 |
Location of containers |
General |
The installation of a container(s), complete with all associated equipment and appliances and any subsequent repair or modifications to the installation, shall be carried out by a registered installer qualified to the appropriate grade (domestic or commercial grade) |
Note: This requirement does not include the replacement of containers |
Each container shall be located in an upright position with the valve uppermost, and shall be so placed on a solid non-combustible level base that there can be no danger of the container tilting or falling over. Compacted soil shall not be acceptable |
Containers shall be so located in an accessible position that: |
| |
a) full and empty containers can be changed easily; |
| |
b) they can be disconnected and removed quickly in case of an emergency, and |
| |
c) the container valve can be easily operated |

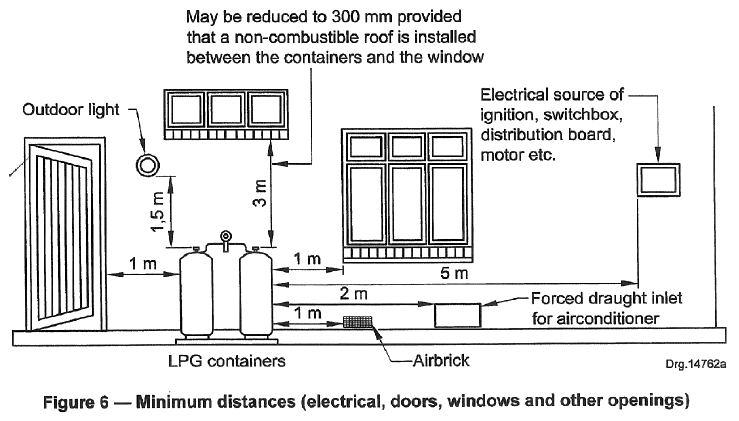

In the selection of a location of containers, the following locations shall be avoided: |
| |
a) any position in which the containers are likely to cause obstruction, to become damaged or to be exposed to conditions likely to affect their safety; |
| |
b) any position that is subject to extreme temprature (excluding natural elements) |
| |
c) any position near corrosive or readily combustible substances; and |
| |
d) any position adjacent to cellars, drains, hollows, etc, where escaping gas might collect |
|
Indoor Location |
Where LPG containers are permanently installed or stored in a building, the type of building (in accordance with SANS 10400-A, see also annex B) and the corresponding size of the container(s) shall be as follows: |
| |
a) flats (H3): a maximum of 9 kg per flat; |
| |
b) houses (inculding cluster housing and group housing (not exceeding two storeys)): a total maximum of 19 kg per unit; |
| |
c) commercial premises (all occupancies not mentioned in this part of SANS 10087): a total maximum of 19kg oer unit, provided that there is a seperating element that complies with the requirements of SANS 10400-T ; |
| |
d) industrial premises (class of occupancy D1 to D4): a maximum of 19 kg per 600 m3 of building space with a total maximum of 100 kg; and |
| |
e) for special events: consult the local fire authority concerned; and |
| |
f) no fixed installation shall be installed inside a garage |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
